Welcome to ScreenSoft White Label
Thank you for choosing ScreenSoft White Label. This guide explains how to prepare your domains and branding so we can activate your portal, game interface and documentation.
How White Label works
Your users sign in through your own domain and see your branding on the login page and in the administration interface. The game interface and documentation are also available on your own subdomains. Your logo replaces the logo in the top-left corner of the documentation. ScreenSoft operates the platform and configures all three domains and their HTTPS certificates.
Where your branding appears
The following examples show where your logo, domain and browser icon appear on the login page, in the administration interface and in the documentation.

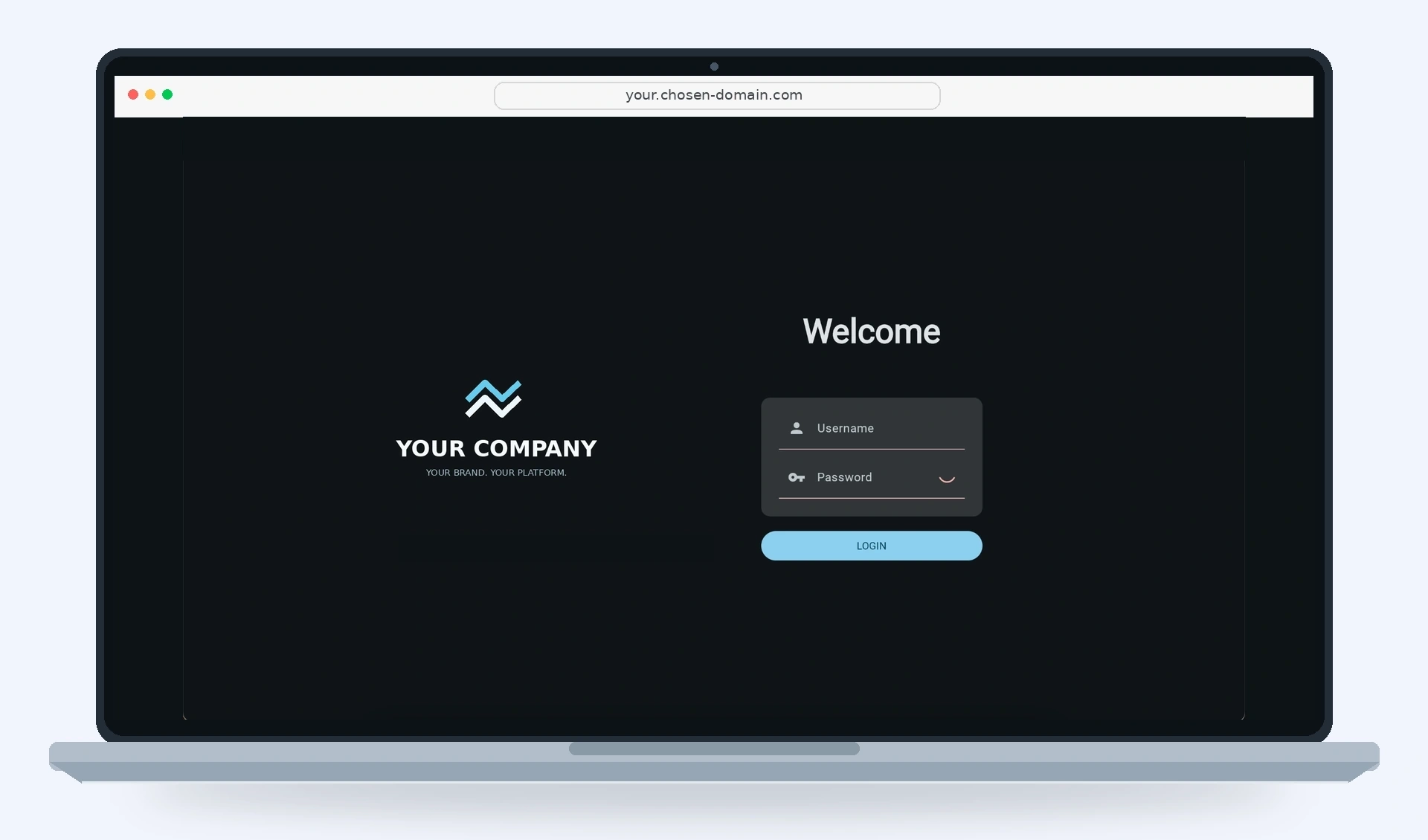

Login page
Logo A · Your domain · 512 × 512 px · PNG
Your domain: your.chosen-domain.com

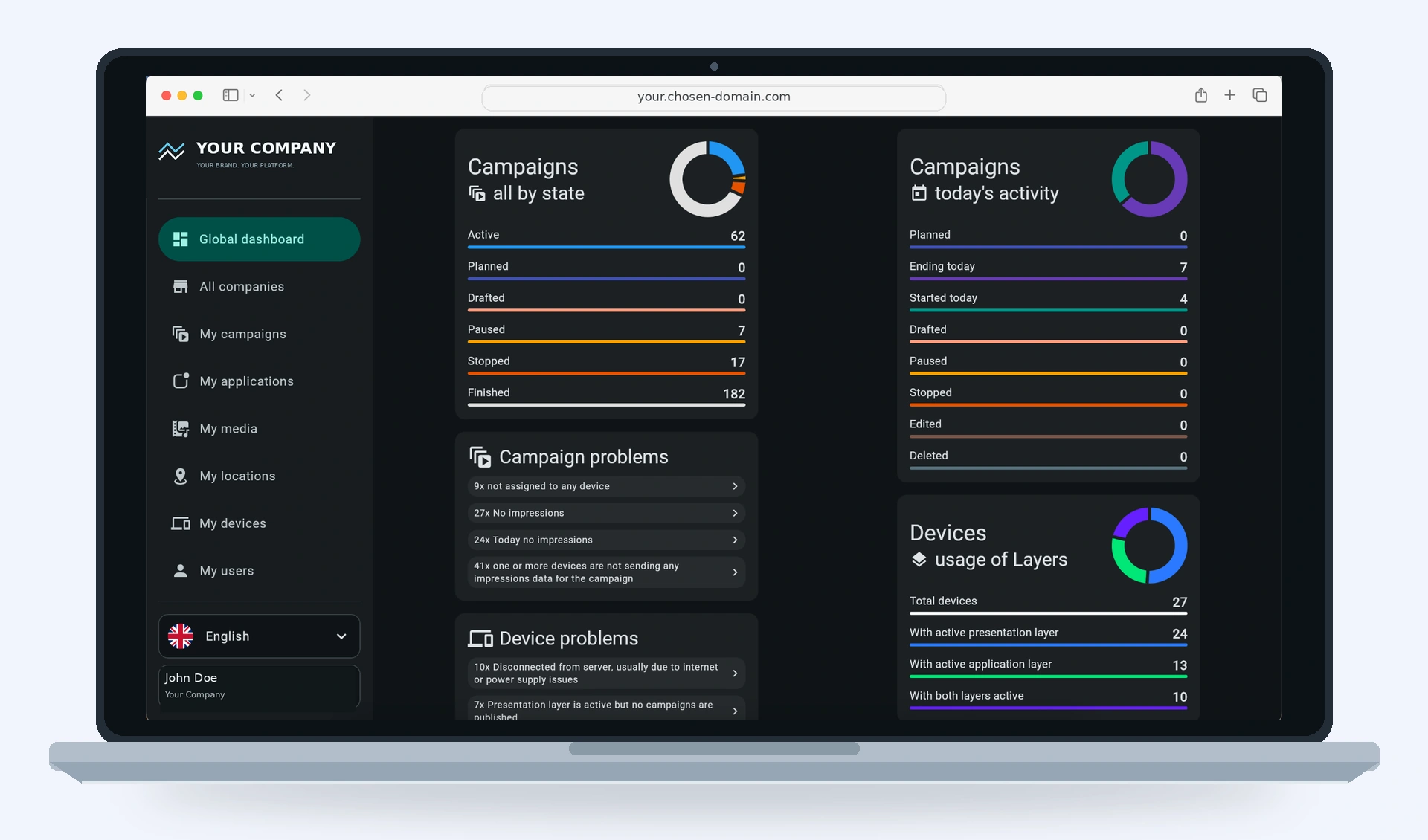

After signing in
Logo B · Panel logo · 1846 × 512 px · PNG; Favicon · Browser icon · 128 × 128 px · PNG
Example company and user: Your Company · John Doe

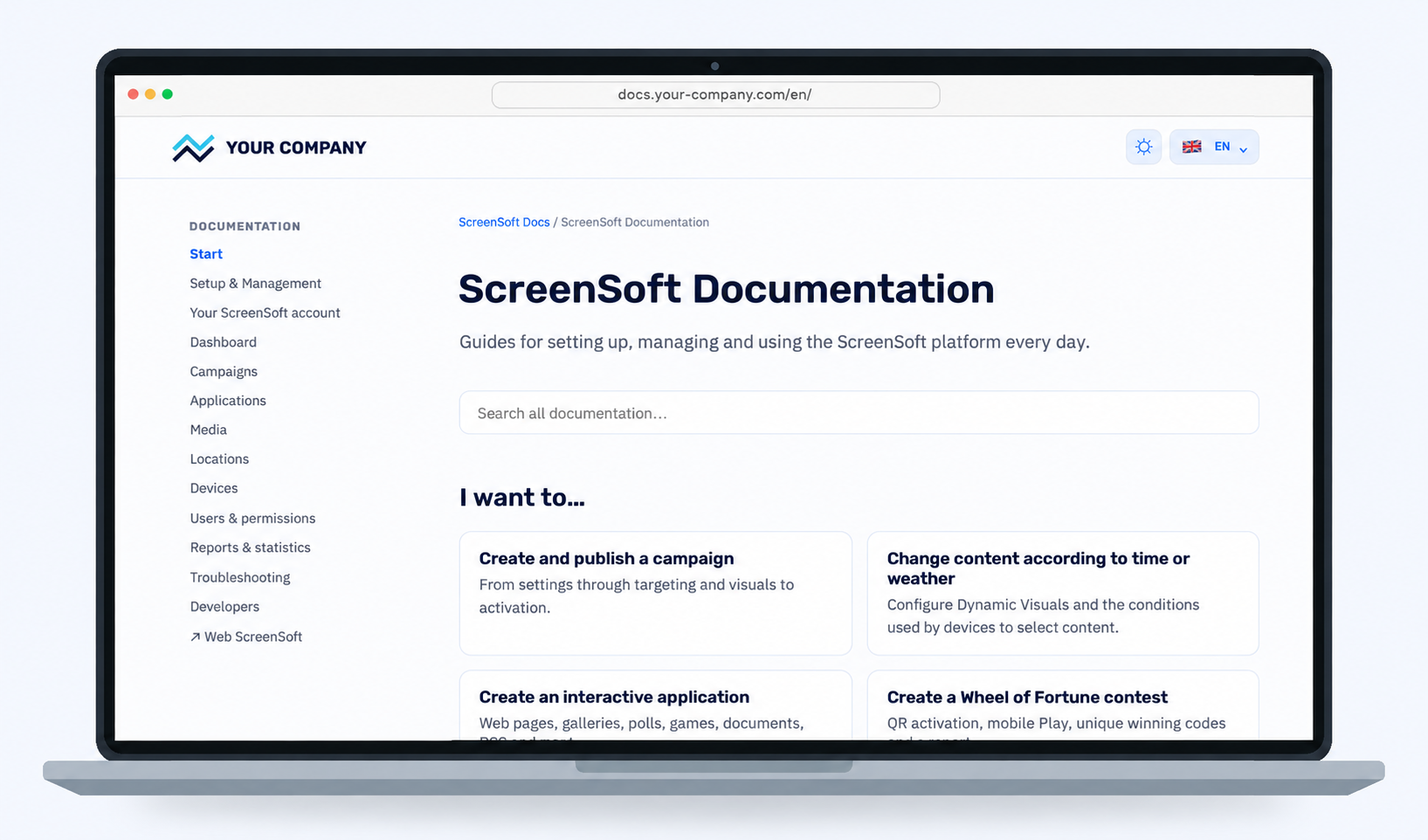

Documentation
Logo C · Documentation logo at the top left · 560 × 111 px · PNG
docs.your-company.com
Documentation will be available on your own domain. We replace the ScreenSoft logo in the top-left corner of the header with your logo; the guides continue to document the ScreenSoft platform.
Required branding files
All dimensions and PNG formats below are mandatory, not recommendations.
| File | Required size | Format |
|---|---|---|
| Logo A | 512 × 512 px (1:1) | PNG |
| Logo B | 1846 × 512 px | PNG |
| Favicon | 128 × 128 px (1:1) | PNG |
| Logo C – Documentation | 560 × 111 px | PNG |
For Logo C, supply two PNG versions with transparent backgrounds: one readable on a light background and one on a dark background. Both must be 560 × 111 px. The logo scales to fit the header without changing its aspect ratio.
DNS records
Create the following DNS A records with your domain provider. You can choose your own subdomain names – for example, portal.yourcompany.com, app.yourcompany.com or my.yourcompany.com for the administration portal. The subdomains in the table are examples only. This is DNS configuration, not a URL redirect.
| Service | Example subdomain | Record | IPv4 address |
|---|---|---|---|
| Administration portal | portal.yourcompany.com | A | 5.189.165.191 |
| Game interface | game.yourcompany.com | A | 207.180.230.105 |
| Documentation | docs.your-company.com | A | 5.189.165.191 |
What to send us
Please send the following details and graphics to support@screensoft.org
- Exact portal, game and documentation subdomains
- Logo A – 512 × 512 px, PNG
- Logo B – 1846 × 512 px, PNG
- Favicon – 128 × 128 px, PNG
- Logo C – documentation, 560 × 111 px, PNG; versions for light and dark backgrounds
- Public website address and browser tab title
Activation and verification
ScreenSoft activates White Label within 24 hours counted on business days (Monday–Friday), starting once the DNS records are correctly configured and all required details and valid graphics have been received. For example, Friday at 14:00 means Monday at 14:00.
After activation, open the portal, game interface and documentation over HTTPS. Check sign-in, domains and logos. In the documentation, verify the top-left logo in both light and dark mode and check that each language is available. If anything is wrong, contact support@screensoft.org.
